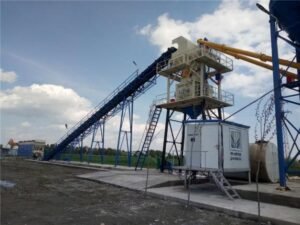

HZS belt type concrete batching plant, also called concrete mixing station or concrete mixing plant, is a kind of construction applied equipment, specially used to combine coarse aggregates, sand, cement and other admixture to produce concrete.
It consists of mixing system, aggregate/fly ash/cement/additive/water weighing system, batching system, conveying system and automatic control system etc. The capacity ranges from 25m3/hr to 240m3/hr.
The batch plant is suitable for the commodity concrete and concrete construction in each kind of architectural project, including water conservancy, electric power, railroad, tunnel, arch of bridge, harbor-wharf and national defense project, etc.
Parameters
| Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS180 | HZS240 |
| Capacity | 25m³/h | 35m³/h | 50m³/h | 60m³/h | 75m³/h | 90m³/h | 120m³/h | 180m³/h | 240m³/h |
| Feeding Mode | Bucket | Bucket | Bucket | Belt | Bucket | Belt | Belt | Belt | Belt |
| Discharge Height | 3.8m | 3.8m | 3.8m | 3.8m | 4.1m | 4.1m | 4.2m | 4.2m | 4.2m |
| Working Time | 72s | 72s | 65s | 60s | 65s | 60s | 60s | 60s | 60s |
| Total Power | 50.25kw | 75kw | 105kw | 125kw | 145kw | 165kw | 210kw | 260kw | 326kw |
| Concrete Mixer | JS500 | JS750 | JS1000 | JS1000II | JS1500 | JS1500 | JS2000 | JS3000 | JS4000 |
| Batching Machine | PLD800 | PLD1200 | PLD1600 | PLS1600 | PLD2400 | PLS2400 | PLS3200 | PLS4800 | PLS6400 |
 |
Mixing System
1. Perfect multi-sealing system to avoid leakage and protect shaft ends. 2. Equipped with changeable wear-resistance blade and liner plates, lifetime is over 60,000 times. 3. Equipped with auto lubrication pump, once fill for 5-7 days running. 4. Advanced motor and reducer driven system to keep stable performance. |
 |
Weighing System
1. Powder and water or additives are measured independently, ensuring rapid action and high accurate measurement. 2. High accuracy sensor ensures the error no more than 1%. |
 |

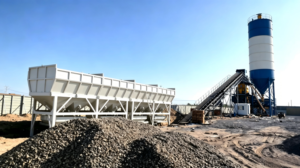

Aggregate Batching System
1. Sand storage bin is with large vibrator, guarantee smooth and fast discharge. 2. Accumulative weighing system and separate weighing system are available choice. 3. High accuracy sensor ensures the error no more than 2%. |
 |

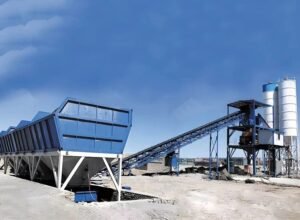

Aggregate Conveying System
1. Inclined angle up to 45 degree, stand small area. 2. Equipped with recycled belt conveyor to reuse the leakage material. 3. Vibrating Return cover to avoid sticks. 4. Equipped with maintenance aisle. Easy for maintenance and clean. 5. Fully rain cover to reduce the dust emission and protect the belt if customers need. |
 |

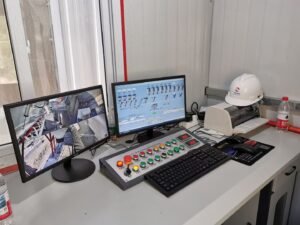

Control System
1. Automatic or manual can be adjusted flexibly smoothly. 2. All wires & cables are coded, easy to track and maintenance. 3. Intelligent management system for task tracking, printing, etc. 4. Computer+ PLC control system to ensure simple and stable operation, HD display can show clearly about the operation of each part. |
 |

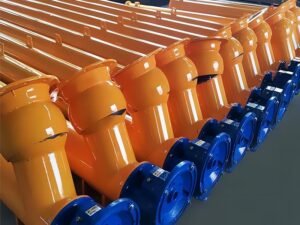

Cement Screw Conveyor
1. High revolving speed, large conveying capacity, high precision and nice conveying condition. 2. Easy assembly, easy connection, reliable sealing and wide application. 3. Suitable for conveying a variety of powder, granular, small bulk materials. 4. Diameter as φ219mm/φ273mm/φ325mm, lengths as 6m, 8m or 10m, all can be customized. 5. The spiral reducer is currently the best on the market, with low noise, low failure rate, gear grinding process and high precision. |
 |

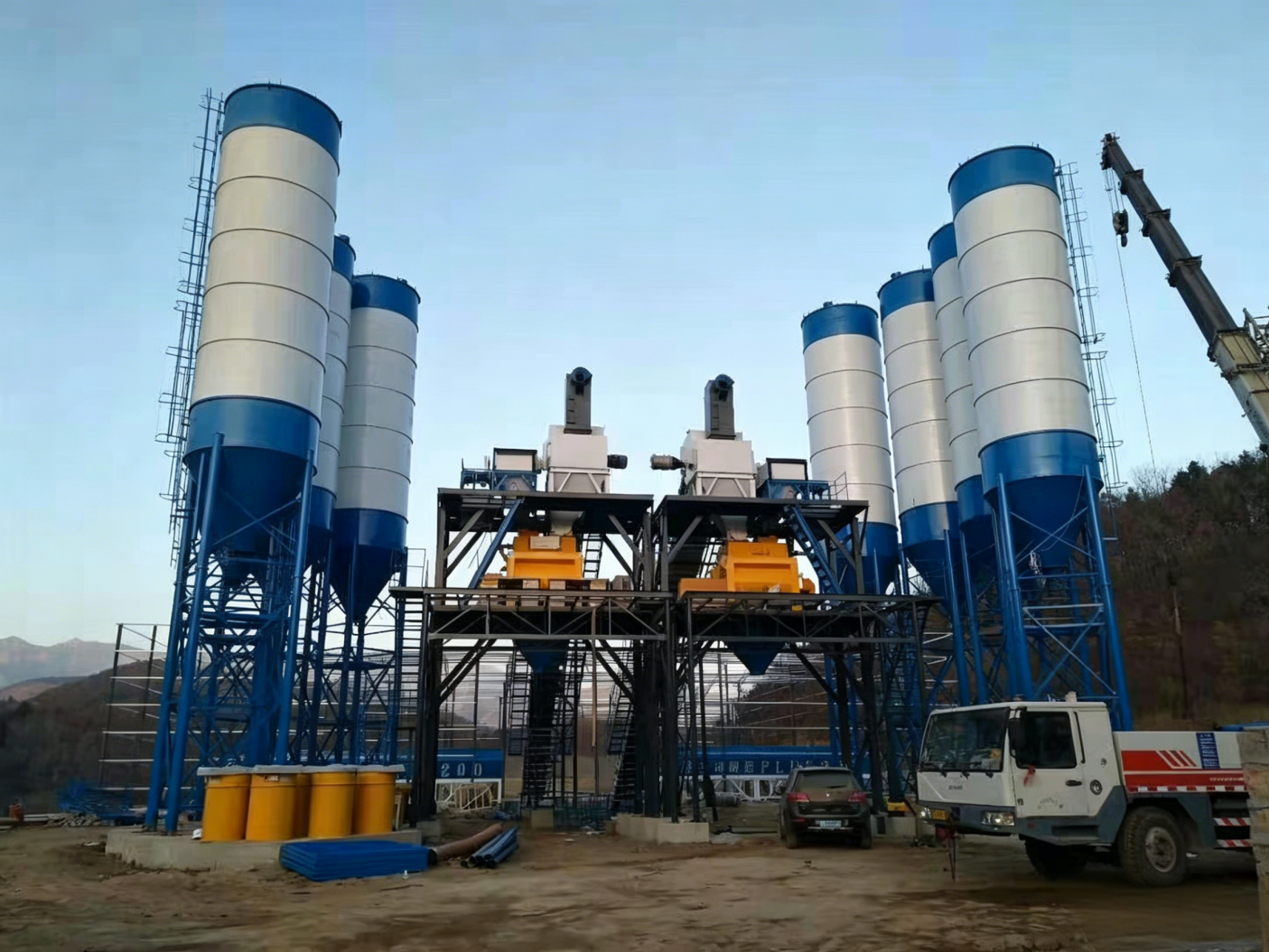

Cement Silo
1. Vertical cement silo and horizontal cement silo are available for selection. 2. Capacity range from 50T to 300T. Accessories are including air-break device, gate valve, relief valve, level indicator, dust collector, etc. 3. High-quality steel, good sealing, stable support and long |
